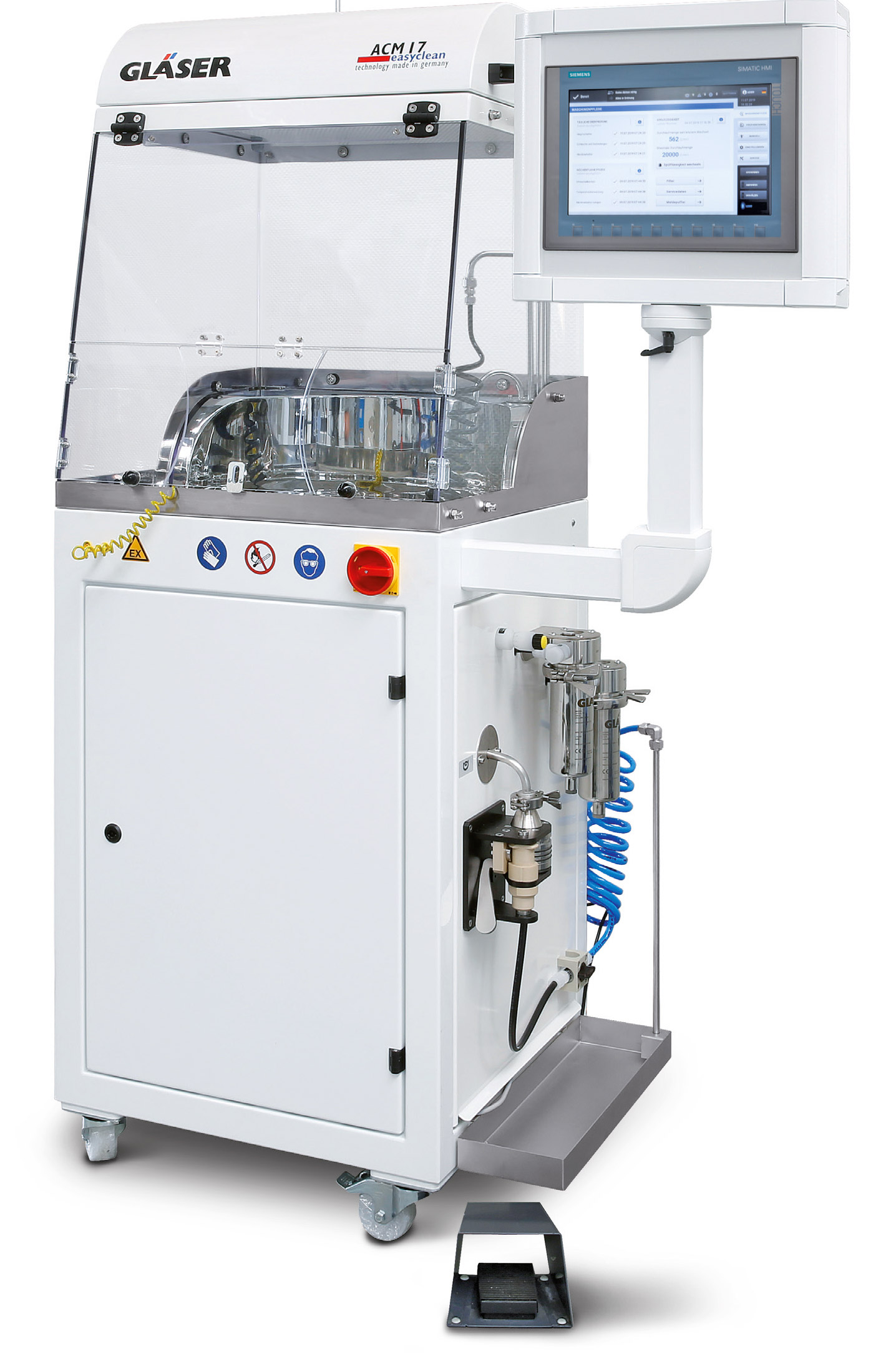

Glaser ACM 17

Extraction system in the second generation. Latest state-of-the-art technology for the inspection of Technical Cleanliness on functionally relevant components.

Re-engineered in accordance with the recommendations of VDA 19.1 chapter 11 for work safety and protection of the environment. The ACM17 is perfectly suitable for your requirements in future.

ACM 17'nin en önemli özellikleri

SUPPLYING of filtered air passes over the flow cap top. Active protection of components and the flushing bowl against contamination. This produces an ISO 5-class like extraction area. High occuptional safety by connecting your extraction to our cabinet.

12" BASIC TOUCHSCREEN with intuitively operable software. Simple operating due to password-secured user-levels and the possibility to save test processes. Continuous monitoring of safety relevant functions.

ANALYSIS AREA (500 mm) with round basin (300 mm) with polished stainless steel interior. Components from 3-5 kg can be tested with the help of a parts holder. Different extraction options: rins/spray, flood, ultrasound.

THE USER-FRIENDLY, lifting and tilting membrane holder includes three individual cascade rings with tweezer leads for safe and simple membrane fitting and removal of Ø 47 mm membrane filters.

OPTIONAL EXHAUSTION OPENING: Exhaustion of up to 90% of the arising emission of aerosol in the back working area. For increased product and operator´s safety.

EXTENSIVE CONCEPT OF EXPLOSION PROTECTION: Prevention of explosive atmosphere in analysis area: secured ignition protection, high safety technique above the standard, ground connections and much more.
